One Oil Cup Oil Dielectric Strength Tester 1.5kVA Booster Capacity Easy To Carry

One Oil Cup Five Voltage Step up Speeds Oil Dielectric Strength Test Equipment

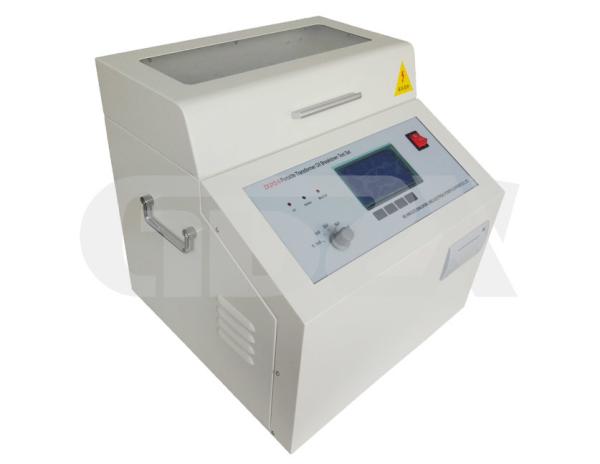

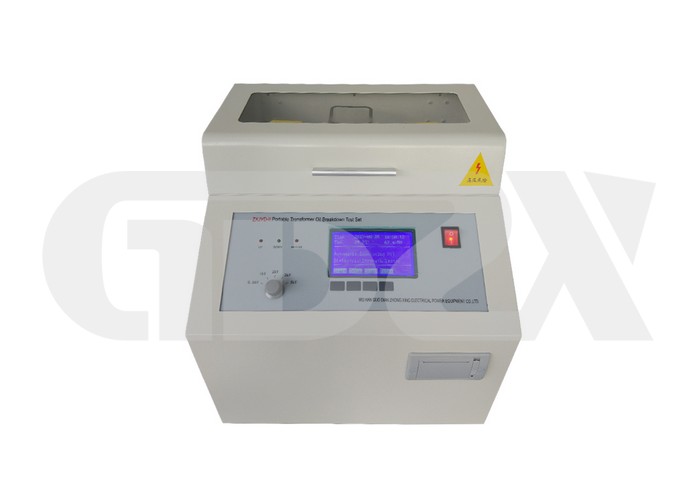

ZXJYD-Ⅱ Portable Transformer Oil Breakdown Test Set easy to operate, fully automatic digital computer control. With high precision anti-interference ability, safe and reliable.

Features

1. Controlled by large-capacity single-chip, stable and reliable;
2. Offers a wide range watchdog circuit, eliminate the phenomenon of dead halt
3. Two national standard methods and customized operation to meet different needs of users
4. One-time-forming glass cup, no oil leakage
5. Unique high voltage sampling instrument design makes measurement results more accurate
6. Over voltage, over current, limit and grounding alarm functions
7. Portable, easy to carry, convenient to use inside or outside doors

Technical Parameter

1. Booster capacity:1.5 kVA
2. Booster speed :0.5 kV/s,1kV/s ,2.0kV/s,3.0kV/s , 5.0kV/s five gears
3. Output voltage:0～100 kV
4. Voltage distortion:＜1%

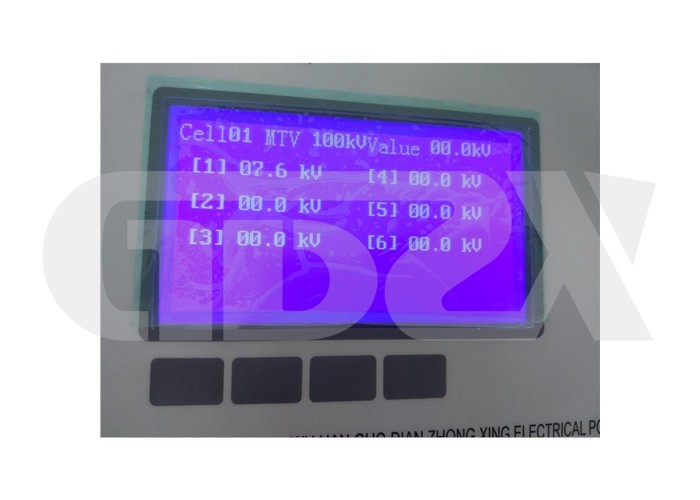

5. Display : LCD display
6. Inter-electrode space:2.5 mm
7. Dimension : 409 mm×393 mm×388 mm
8. Weight:29 kg
9. Work temperature:0～40℃
10. Humidity:≤85%
11. working power supply:AC 220V ± 10%
12. Frequency:50 ± 5 Hz
13. power consumption:＜200 W
