250kV High Voltage Ac Resonant Test System For GIS , test frequency 30-300 Hz

Name: 250kV High Voltage Ac Resonant Test System For GIS test frequency 30300 Hz
Brand: GDZX
Price: 9000 USD

250kV High Voltage Ac Resonant Test System For GIS , test frequency 30-300 Hz Manufactures

Brand Name : GDZX

Model Number : ZXBXZ-54kVA/54kV

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD9000-10000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000sets/year

Delivery Time : 15-30days

Packaging Details : wooden case

Product name : Testing Machine

Frequency regulation : 30Hz-300Hz

Input power supply : three-phase 380V or single-phase 220V

Measurement accuracy : 1.5%

Contact Now

Product Description

This series devices are designed for AC withstand voltage test of substation primary equipment under 550KV or below, mainly composed of variable-frequency power supply, exciting transformer, reactor and capacitive Voltage divider

Product introduction

PLEASE NOTE :

Wuhan GDZX Electrical Power Equipment Co.,Ltd OFFER YOU :

1: FACTORY DIRECT PRICE.
2: NICE QUALITY.
3: QUICK SHIPPING WITHIN 15 DAYS.
4: SMALL ORDER WELCOME..
5: ONLINE PAYMENT.
6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.
7: AFTER SALES SERVICES 7-24

250kV High Voltage Ac Resonant Test System For GIS , test frequency 30-300 Hz
1.Application:

AC withstand voltage test of GIS
Test frequency 30-300 Hz
Test voltage 250 kV, time 1 min.

2. Working environment

ambient temperature: - 10℃ - 50℃
relative humidity: ≤ 90%RH;
altitude: ≤ 1000 meters;

3. Main technical parameters and functions

rated capacity: 250kVA;
input power: three phase 380V or single phase 220V voltage, frequency 50Hz;
rated voltage: 250kV;
rated current: 1A;
working frequency: 30-300Hz;
device output waveform: sine wave
waveform distortion rate: output voltage waveform distortion rate < 1%;
working hours: continuous 15min at rated load; 1.1 times over 1 minutes;
temperature rise ≤ 65K after continuous operation of 5min under rated load
quality factor: the device itself Q ≥ 30 (f=45Hz);
Protection: Over-current, over-voltage and flashover protection for the tested products
Measurement accuracy: System RMS Class 1.5

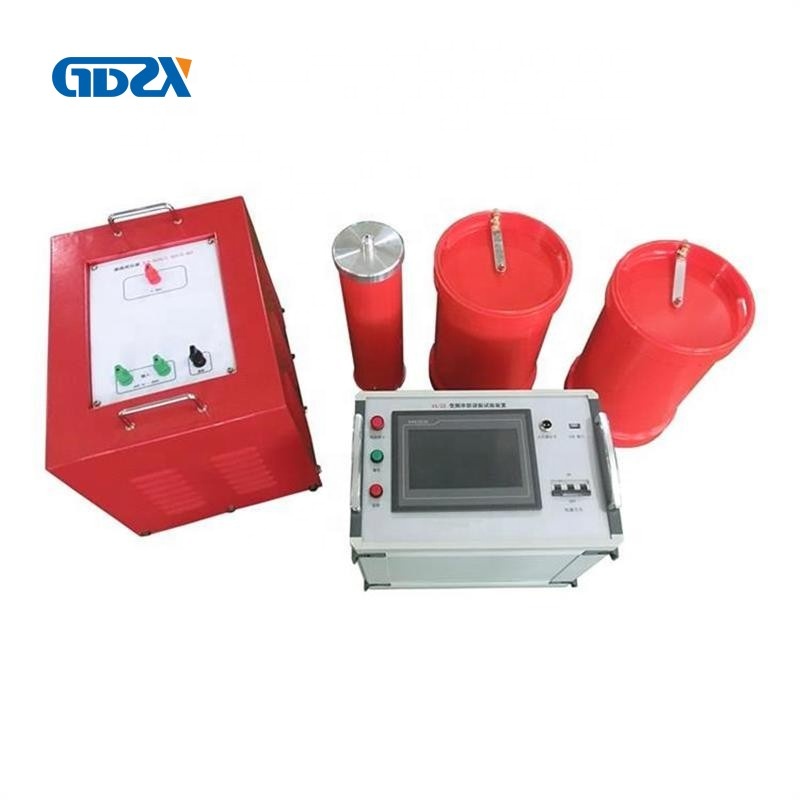

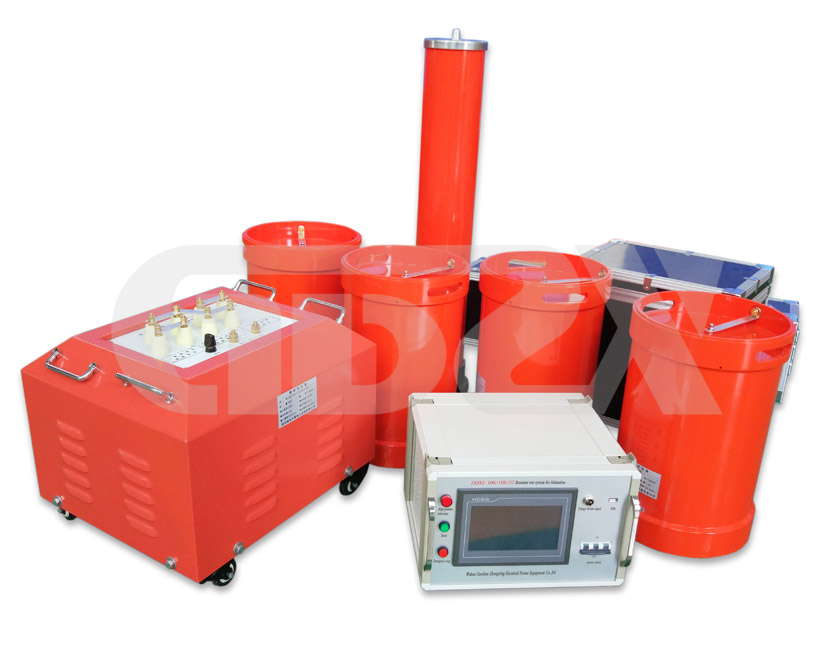

4. Composition

No	Product Name
1	Exciting transformer
2	Power converter
3	Reactor
4	Divider

Note : This product can be customized.

250kV High Voltage Ac Resonant Test System For GIS , test frequency 30-300 Hz

For more details , pls contact me directly .
